TELESCOPIC MASTS

TELESCOPIC MASTS

The telescopic masts consist of two series with different heights, each of which is available with different diameters and thicknesses. The models with bolts are used for the telescopic insert, with fixing with screw, on the masts with a smaller diameter. The tubes are made ​​of steel, hot dip galvanized. The hot dip galvanizing ensures high quality and durability.

2 m

CodeItem

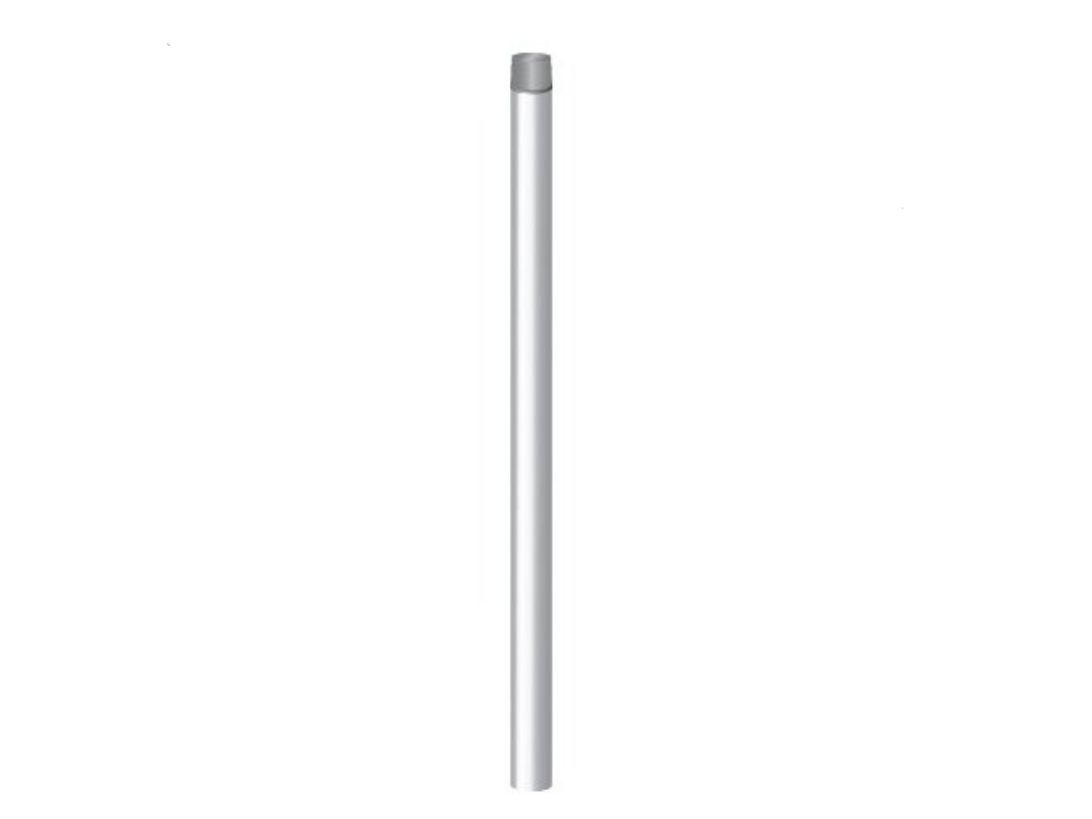

07-730PALO TERMINALE mt 2 Ø 25 mm SP. 0,8 mm CON TAPPODatasheetPhotoEC Conformity

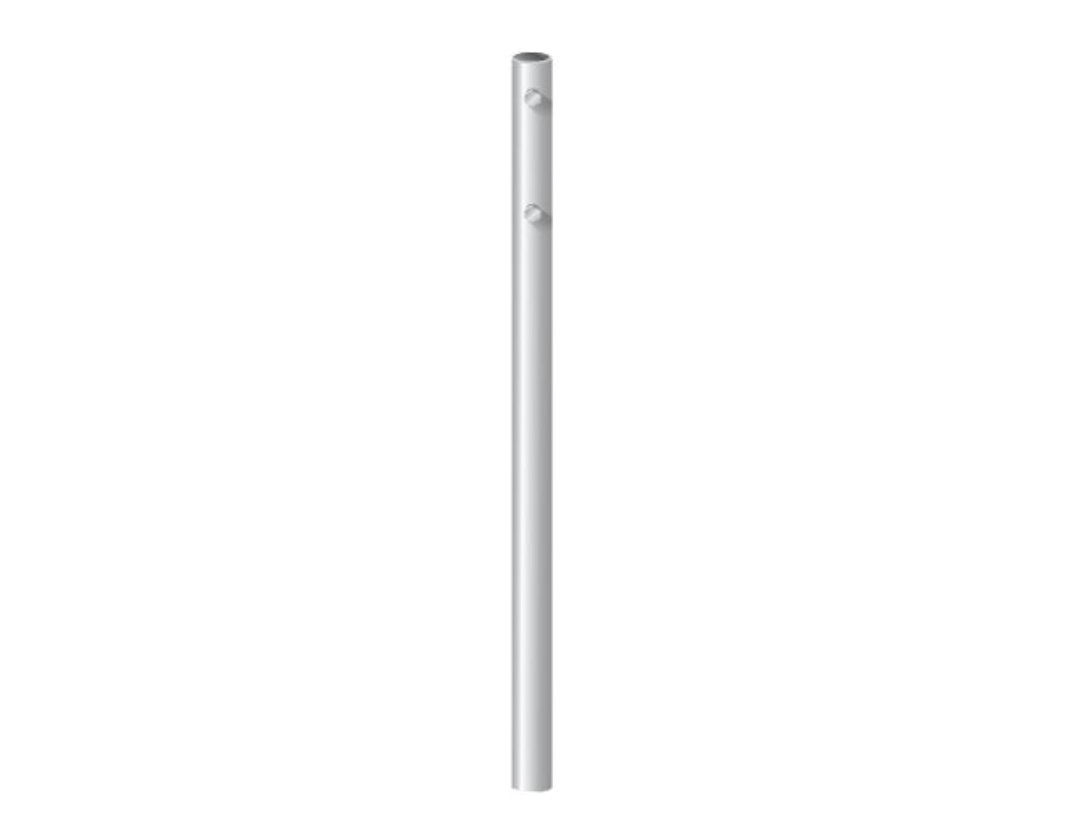

07-731PALO TELESCOPICO mt 2 Ø 30 mm SP. 0,8 mmDatasheetPhotoEC Conformity
07-732PALO TELESCOPICO mt 2 Ø 35 mm SP. 0,8 mmDatasheetPhotoEC Conformity
07-733PALO TELESCOPICO mt 2 Ø 40 mm SP. 0,8 mmDatasheetPhotoEC Conformity
07-734PALO TELESCOPICO mt 2 Ø 45 mm SP. 1 mmDatasheetPhotoEC Conformity
07-735PALO TELESCOPICO mt 2 Ø 50 mm SP. 1 mmDatasheetPhotoEC Conformity

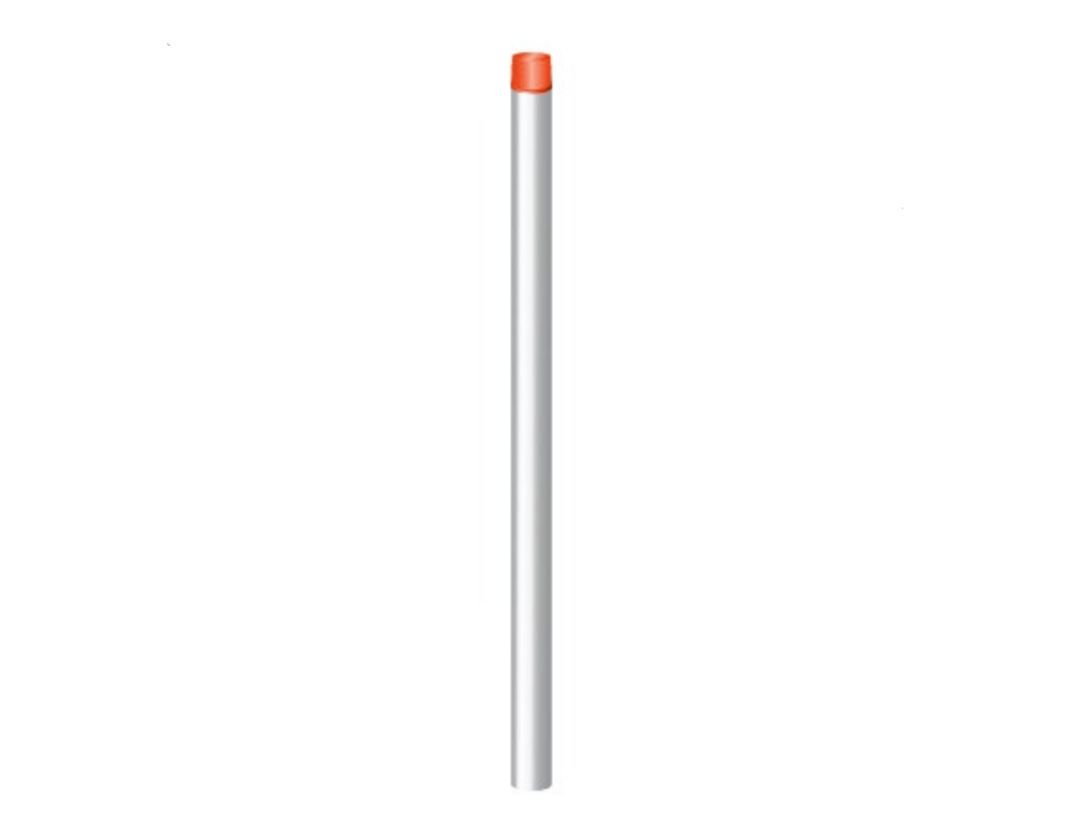

07-730/APALO TERMINALE mt 2 Ø 25 mm SP. 1,4 mm CON TAPPODatasheetPhotoEC Conformity
07-731/APALO TELESCOPICO mt 2 Ø 30 mm SP. 1,4 mmDatasheetPhotoEC Conformity
07-732/APALO TELESCOPICO mt 2 Ø 35 mm SP. 1,4 mmDatasheetPhotoEC Conformity
07-733/APALO TELESCOPICO mt 2 Ø 40 mm SP. 1,4 mmDatasheetPhotoEC Conformity
07-734/APALO TELESCOPICO mt 2 Ø 45 mm SP. 1,4 mmDatasheetPhotoEC Conformity
07-735/APALO TELESCOPICO mt 2 Ø 50 mm SP. 1,4 mmDatasheetPhotoEC Conformity
07-736/APALO TELESCOPICO mt 2 Ø 55 mm SP. 1,5 mmDatasheetPhotoEC Conformity
07-737/APALO TELESCOPICO mt 2 Ø 60 mm SP. 1,5 mmDatasheetPhotoEC Conformity
07-740PALO TERMINALE mt 2 Ø 28 mm SP. 2 mm CON TAPPODatasheetPhotoEC Conformity
07-741PALO TELESCOPICO mt 2 Ø 35 mm SP. 2 mmDatasheetPhotoEC Conformity
07-742PALO TELESCOPICO mt 2 Ø 42 mm SP. 2 mmDatasheetPhotoEC Conformity
07-743PALO TELESCOPICO mt 2 Ø 50 mm SP. 2 mmDatasheetPhotoEC Conformity
07-740/APALO TERMINALE mt 2 Ø 30 mm SP. 3 mm CON TAPPODatasheetPhotoEC Conformity

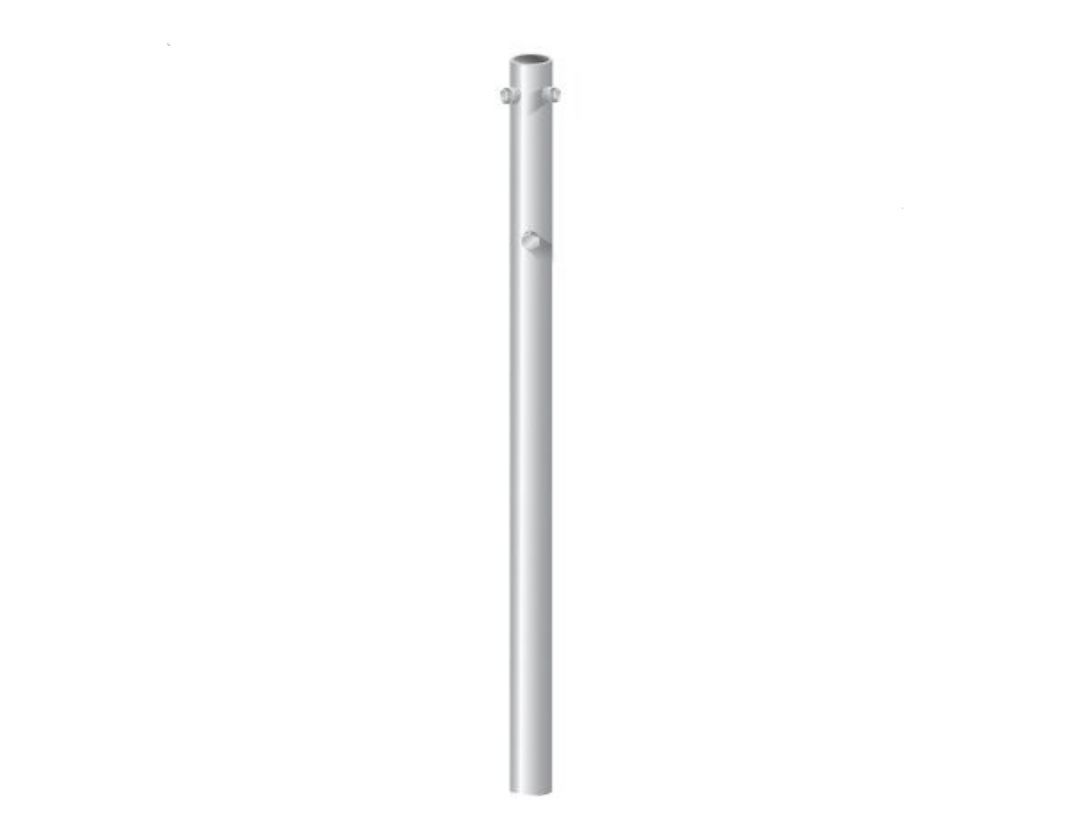

07-741/APALO TELESCOPICO mt 2 Ø 40 mm SP. 3 mm VITI INOXDatasheetPhotoEC Conformity
07-743/APALO TELESCOPICO mt 2 Ø 50 mm SP. 3 mm VITI INOXDatasheetPhotoEC Conformity
07-744PALO TELESCOPICO mt 2 Ø 60 mm SP. 3 mmDatasheetPhotoEC Conformity
07-745PALO TELESCOPICO mt 2 Ø 70 mm SP. 3 mmDatasheetPhotoEC Conformity

3 m

CodeItem
07-746PALO TERMINALE mt 3 Ø 25 mm SP. 1,4 mm CON TAPPODatasheetPhotoEC Conformity
07-746/BPALO TERMINALE mt 3 Ø 30 mm SP. 1,4 mm CON TAPPODatasheetPhotoEC Conformity
07-746/APALO TELESCOPICO mt 3 Ø 30 mm SP. 1,4 mmDatasheetPhotoEC Conformity
07-747PALO TELESCOPICO mt 3 Ø 35 mm SP. 1,4 mmDatasheetPhotoEC Conformity
07-747/APALO TELESCOPICO mt 3 Ø 40 mm SP. 1,4 mmDatasheetPhotoEC Conformity
07-748PALO TELESCOPICO mt 3 Ø 45 mm SP. 1,4 mmDatasheetPhotoEC Conformity
07-748/APALO TELESCOPICO mt 3 Ø 50 mm SP. 1,4 mmDatasheetPhotoEC Conformity
07-750PALO TERMINALE mt 3 Ø 28 mm SP. 2 mm CON TAPPODatasheetPhotoEC Conformity
07-751PALO TELESCOPICO mt 3 Ø 35 mm SP. 2 mmDatasheetPhotoEC Conformity
07-752PALO TELESCOPICO mt 3 Ø 42 mm SP. 2 mmDatasheetPhotoEC Conformity
07-753PALO TELESCOPICO mt 3 Ø 50 mm SP. 2 mmDatasheetPhotoEC Conformity
07-751/APALO TELESCOPICO mt 3 Ø 40 mm SP. 3 mm VITI INOXDatasheetPhotoEC Conformity
07-753/APALO TELESCOPICO mt 3 Ø 50 mm SP. 3 mm VITI INOXDatasheetPhotoEC Conformity

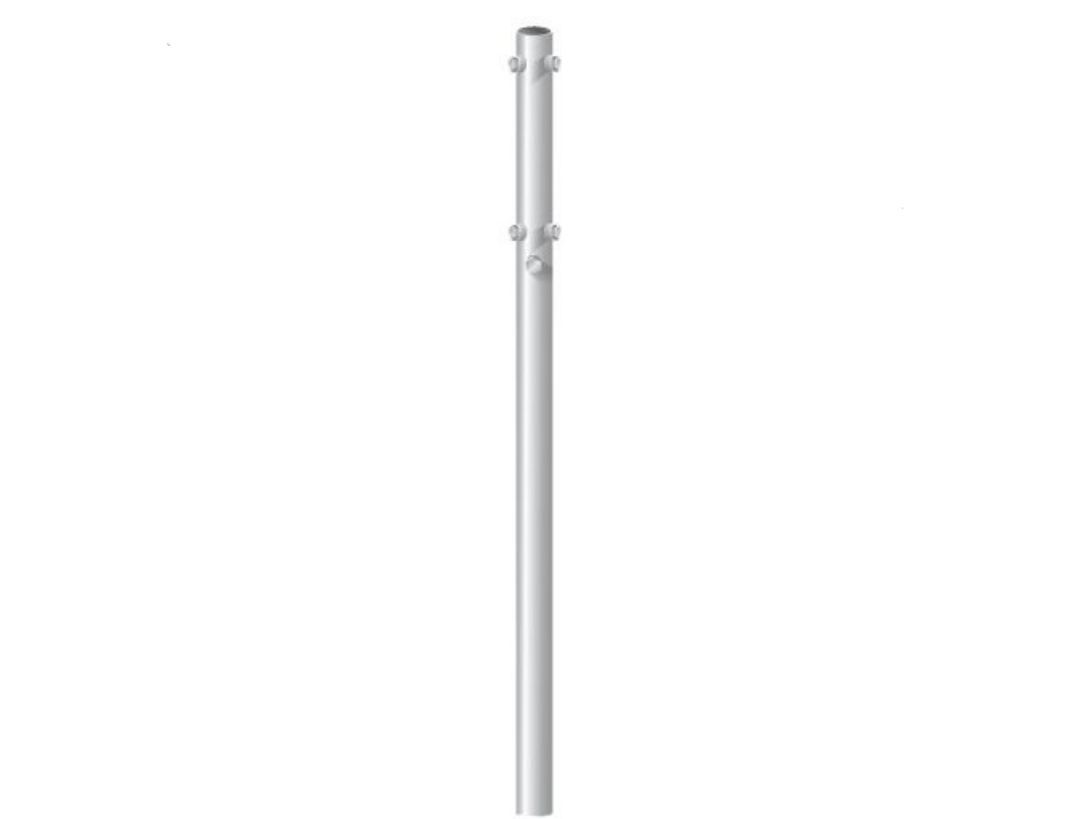

07-754PALO TELESCOPICO mt 3 Ø 60 mm SP. 3 mmDatasheetPhotoEC Conformity
07-755PALO TELESCOPICO mt 3 Ø 70 mm SP. 3 mmDatasheetPhotoEC Conformity
