New SAT/DTT transmodulators S/D FLEX series
10-02-2020
The S/D FLEX series transmodulators allow to receive for each input SAT Free To Air or coded transmissions present in a transponder (one for each input) and distribute them in a centralized TV antenna system in digital format (COFDM).

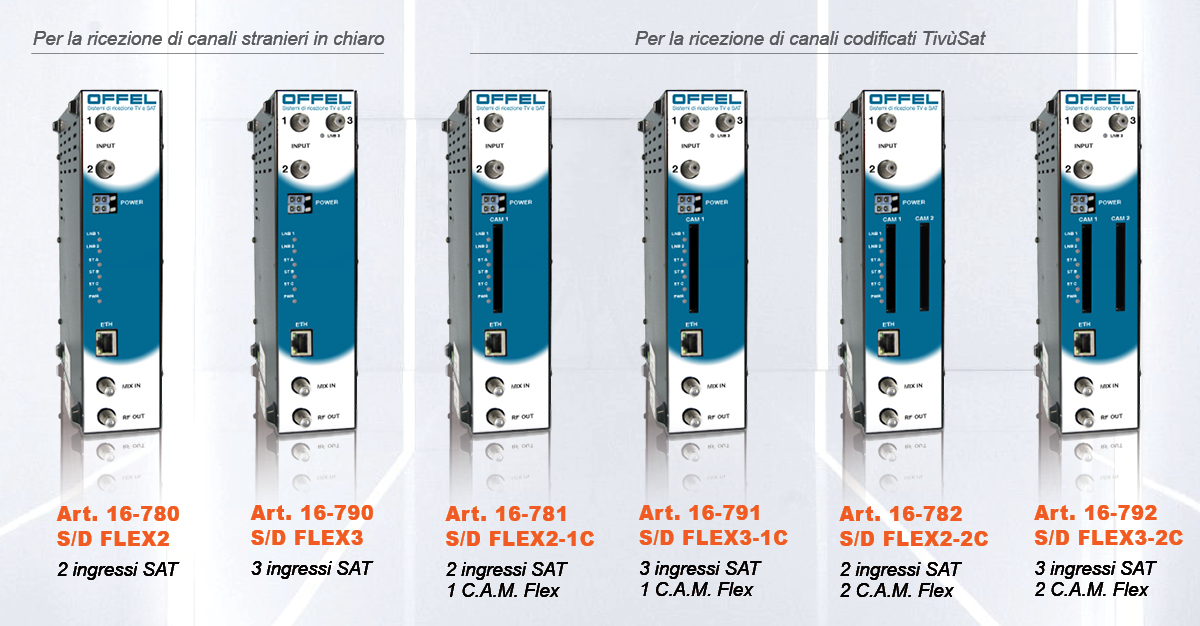

Models with 2 or 3 inputs, in FTA or Common Interface (1 or 2 CAM) version.
"Flex" means "flexible"
The services selected by each transponder can be re-modulated on any of the available output MUXs, optimizing the transmission flow of each MUX, which can contain on average 7/8 remodulated programs.
It is possible to select up to a maximum of 4 MUX output based on the number of services to be distributed. The output MUXs are always adjacent to each other.
More channels
In the Common Interface modules it is possible to use FlexCAM (1 or 2, depending on the transmodulator model), which in the case of the TivùSat platform allows decoding up to a maximum of 10 encrypted programs each.
Simple programming
Programmable from PC using Offel Manager software (CD with software and Ethernet connection cable supplied).
Programmable also remotely through Offel server.
